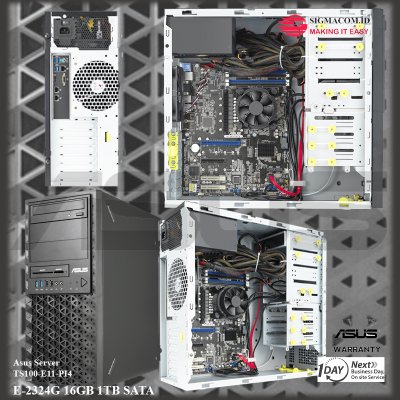

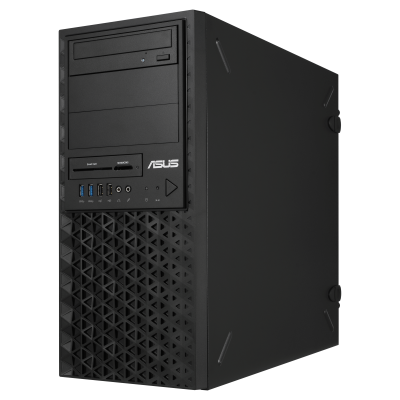

Asus Server TS100-E11-PI4

Processor / System Bus

1 x Socket LGA1200
Intel® Xeon® processor E-2324G (3.1Ghz/4C/8M)

Intel® C256 Chipset
Memory 16 GB DDR4 ECC UDIMM

Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200 ECC UDIMM

Storage : 1x1TB SATA 7.2 Krpm
* Refer to support page for more information
Expansion Slots

Total:4
2 x PCI-E x4 slot, x8 Gen3 Link
1 x PCI-E x8 slot, x8 Gen4 Link
1 x PCI-E x16 slot, x16 Gen4 Link
(Auto switch to x8 link if slot 4 is occupied )
Storage

SATA Controller :
Intel® C256 Chipset
8 x SATA3 6Gb/s ports
Drive Bays

3 x Internal 3.5 (or 2 x 2.5 optional cage) drive bays
1 x Internal 2.5" drive bay
2 x M.2 (Up to 22110)
Gen4 x4 Link and Gen3 x2 Link
gray SATA port will disable when M.2 is SATA signal
Auxiliary Storage FDD/CD/DVD

2 x 5.25" media bays
(Options: No ODD/DVD-RW)
Networking

2 x Intel® I210AT + 1 x Mgmt LAN
Graphic

Please find the latest GPU support from https://servers.asus.com/support/gpu

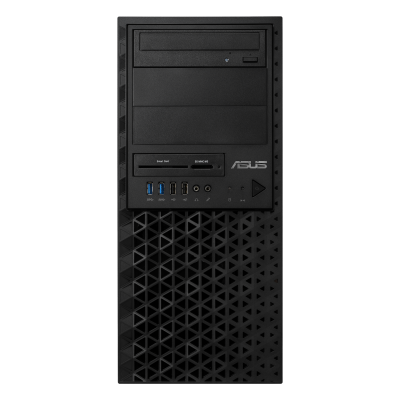

Front I/O Ports

2 x USB 3.2 Gen1
2 x USB 2.0
1 x Headphone port
1 x Microphone port

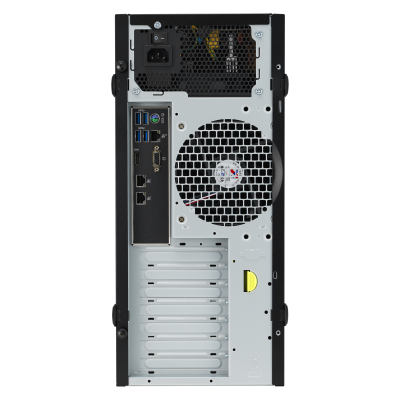

Rear I/O Ports

2 x USB 3.2 Gen2 ports
2 x USB 3.2 Gen1 ports
1 x VGA port (support by ASMB10)
1 x HDMI port from CPU (useable only with iGPU)
2 x LAN Ports
1 x PS/2 Keyboard/ Mouse Port
Switch/LED

Front:
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED
OS Support

Please find the latest OS support from https://servers.asus.com/support/os
Management Solution

Bundle ASMB10-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)
Regulatory Compliance

BSMI, CE, FCC(Class B)
Dimensions

423mm x 190mm x 435mm
16.65" x 7.48" x 17.1"
Weight

Net Weight : 11.56 KG
Gross Weight : 14.68 KG
Power Supply

300W 80PLUS Single Power Supply, Bronze
Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I
550W/750W 80PLUS Single Power Supply, Gold
Rating: 100-240Vac,50-60 Hz,9-4.5A
Environment

Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
Optional Items

Smart Card Reader
Anti-Virus CD pack
Keyboard and mouse
DVD-RW
Print port cable
Com port cable
