Asus Rack Server RS300-E11-RS4

Processor / System Bus
1 x Socket LGA1200
Intel® Xeon® processor E-2356G 3.2Ghz/6C/12M
Intel® C252 Chipset
Memory 1x16GB DDR4 ECC UDIMM
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM

Expansion Slots
Total PCI/PCI-X/PCI-E/PIKE Slots: 3
1 x PCI-E x 16 (Gen4 x16 Link, switch to x8 link when slot B occupied), FH/HL
1 x PCI-E x 8 (Gen4 x8 Link), HH/HL*
1 x PCI-E x 4 (Gen3 x4 Link), Proprietary R/A slot
(optional for Intel X710 10G LAN card)

* not available when supporting NVME SSD
Storage 1x1TB SATA 7.2Krpm
Storage Controller :
Intel® C252 Chipset
6 x SATA3 6Gb/s ports
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1/5/10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
HDD Bays
4 x 3.5 Hot-Swap HDD Bays
-up to (2*SATA/SAS/NVMe + 2*SATA/SAS)
*SAS support only from optional SAS HBA/RAID card
*NVMe support only from optional NVMe upgrade kit
Auxiliary Storage FDD/CD/DVD
1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD-ROM
Networking
2 x Intel® I210AT + 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM
Multi-GPU Support
Please find the latest GPU support from https://servers.asus.com/support/gpu

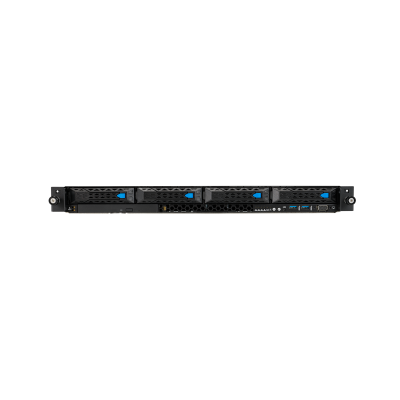

Front I/O Ports
1 x VGA port*
2 x USB 3.2 Gen1 ports

*Must support by ASMB10

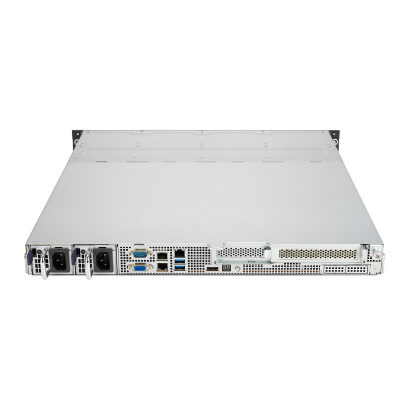

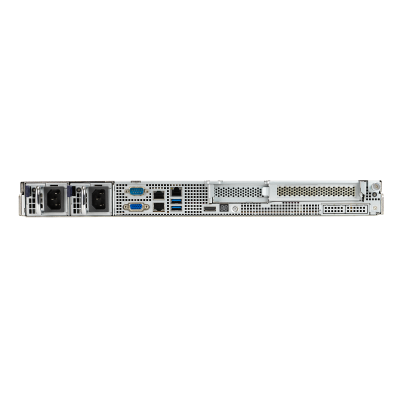

Rear I/O Ports
2 x USB 3.2 Gen 2 ports
1 x VGA port *
1 x HDMI port from CPU
1 x COM port
2 x RJ-45 ports
1 x RJ-45 ports (One for ASMB10-iKVM)(Optional)

*Must support by ASMB10
Switch/LED
Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch

Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
OS Support
Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet

Regulatory Compliance
BSMI, CE, FCC(Class A)
Dimensions
497mm x 439.5mm x 44mm
Form Factor
1U
Weight
15.2
Power Supply
1+1 Redundant 450W 80 PLUS PLATINUM Power Supply
Environment
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
